產品中心
SZFAST-JSMDH
觸點形式：常開(A)
外殼尺寸：11.4*2.3*2.3mm
開關參數：10W/200V/0.5A
外殼尺寸：11.4*2.3*2.3mm
開關參數：10W/200V/0.5A

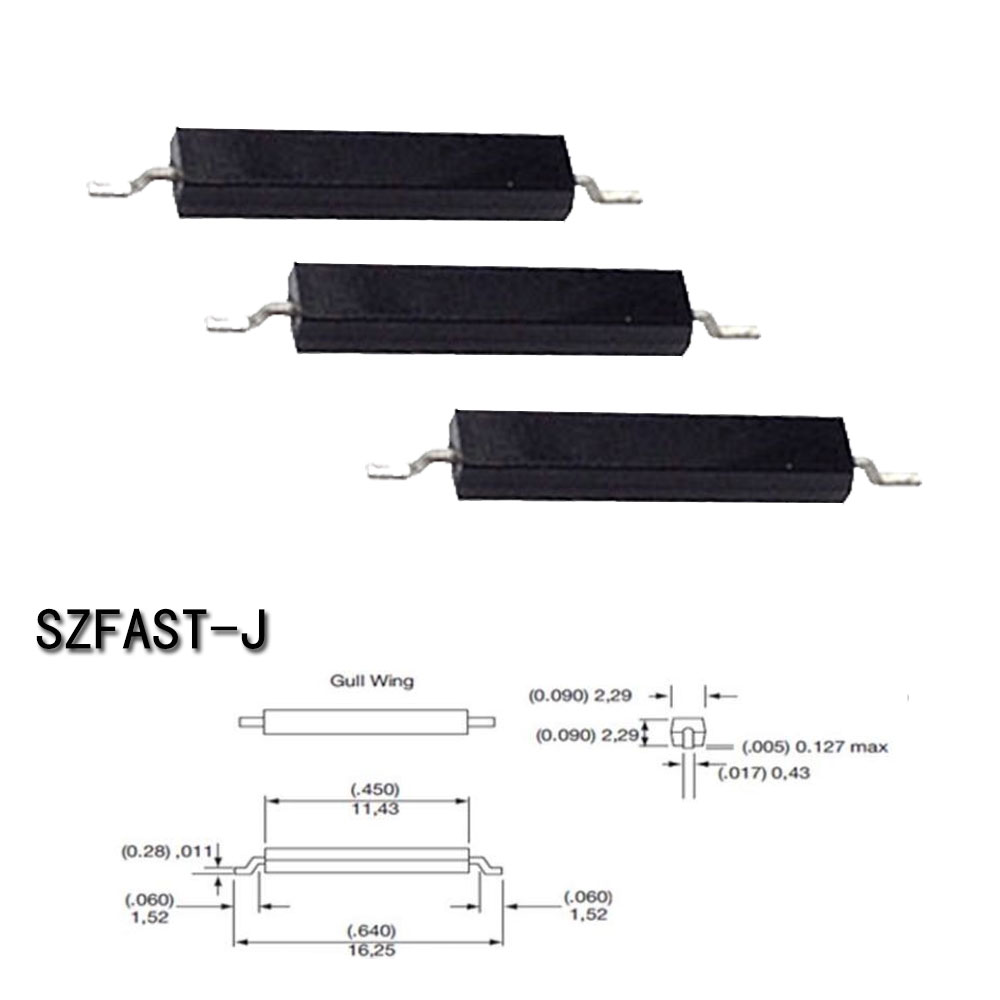

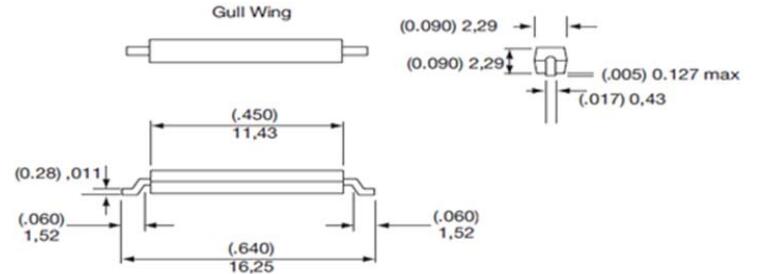

一、尺寸 (DIMENSIONS)
二、技術參數 (Technical Parameters)
| 品牌 / 特點 Brand / Feature | COTO |
較大負載長壽命 |
| 型號 Type | RI-02SMD | |
| 觸點方式 Contact Form | Form A | |
| 動作值 Operate Range | AT | 5-19* |
| 釋放值 Release Range | AT | 2-17* |
| 最大開關功率 Switching Power - max. | W / VA | 10 |
| 最大開關電壓 Switching Voltage - max. | V (DC / AC) | 200 / 140 |
| 最小擊穿電壓 Breakdown Voltag - min. | V | 200-230 |
| 最大開關電流 Swtiching Current - max. | mA (DC / AC) | 500 / 500 |
| 最大載流電流 Carry Current - max. | A (DC,AC) | 0.5 |
| 最大接觸電阻 Contact Resistance - max. | mOhms |
115 |
| 響應頻率 Resonance Frequency - typ. | Hz | 10800 |
| 工作溫度范圍 Operating Temperature | oC | -55 ~150 |
* AT值可根據客戶要求訂制。請向當?shù)劁N售代表咨詢。
* Customer specific AT ranges and modifications are possible. Please contact our local sales.
